Input & Output

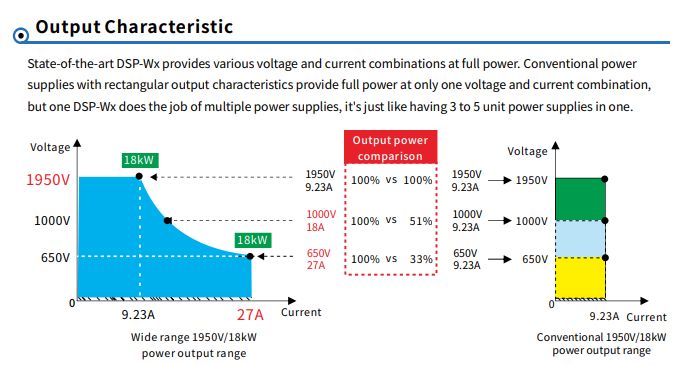

• All Wide Range characteristics; AC mains 180~460V, DC output 0~80V/540A to 0~1950V/27A.
• 3-phase input possible with all models including 5kW unit. Identical phase current keep the 3-phase AC mains balanced. Meets worldwide power distribution regulation.
• Output power 5kW ~ 18kW total 32 models.
• Built-in patented Synchronizing circuitry, easy to integrate 100 units to form a 1500kW power supply.
• Active power factor correction, PF>0.99(480V input).
• Excellent efficiency is nearly 96 %. (18kW models)(*2)

Electrical
• MHz switching frequency(15kW / 18kW), extremely low output ripple and noise low. (*3)
• Multiple 32 bit ARM Based embedded system, fast boot time of 10 seconds or less.
• Use wide Band Gap power semiconductors such as SiC MOSFET SBD. Result in better performance, higher efficiency at lower temperature.
• Adjustable output voltage, current and power.
• Constant Voltage(CV), Constant Current(CC) and Constant Power(CP), CV. CC. or CP working priority setting.
• With internal resistance adjustment function to simulate characteristic of battery
• Provide True RMS current and True Watt readings.
• 18 bit DAC for Setting and 24 bit ADC for Measurement.
• Two kind of output mode; output directly by adjustment or after confirmation.
• Built-in RTC, time is still reliable even when disconnected from time server.
• Customize time synchronization server possible.

Operation
• 5" touch screen, 3 definable background colors, 3 spin knobs with tactile switch plus 2 buttons provide a excellent intuition operational experience.
• Patented Multi-function HOME/RETURN key.
• Patented "output-switch control system" output ON/OFF button, only output when both switches are triggered. Provide extra layer of safety.
• Up to 8000 sets of V/A/W data storage possible with time resolution of 1ms.
• Three sets of settings can be stored and recalled from the front panel.
• Software provides control and sequence data setting.
• Data logging with timestamp.

Safety
• Intelligent stepless speed controlled fans reduce acoustic noise and keep system temperature low.
• All models equip with auto-discharge circuit, discharge voltage to safe range within 10 sec. after output off.
• Programmable output ramp up and ramp down protecting the device under test.
• User definable power ON mode (LAST/OFF).
• Programmable over voltage protection and over current protection.
• Close case firmware upgrade with enhance protection design ensure successful system upgrade.
• Remote sense functionality compensation voltage up to 5V.
• CE approved.
• Filled Transport Packages approved.
• Vibration Test approved.

Interface
• Built-in 2 LAN(LXI) ports minimize wiring and reduce network complexity.
• Multi-purposed slot for optional interface, GPIB/Serial Port/Isolated Analog.
• Fast response(3ms) LXI approved LAN interface.
• Support SCPI commands.
• Provide IVI-COM driver.
• Alarm signal output and Interlock mechanism prevent possible injury.
• Optional isolated analog programming port, 0~5V or 0~10V for setting and monitoring output V/A/W.
• USB hotplug port provides easy data accessibility. (*4)
• Provided Graphical connection control program.
• Easy comparision between wide range and traditional DC power supply with cumtomized program. (Download)

note:
*1: The ratio varies by model.
*2: The efficiency varies by model and input voltage.
*3: MHz switching frequency on selective models.
*4: USB2.0 flash driver format to FAT16(2GB) / FAT32(32GB).

• Battery Testing
• Vehicle Electronics
• LED Testing
• Lighting
• Telecom and IT Industries
• Automated Test Equipment
• Factory Automation

• Sputtering and Coating
• Chemical Treatment
• Water Purification
• Heat Processing
• QC Testing
• Electronic Anti-rust
• New Energy R&D
